Juice HACCP Monitoring: FDA Rules, Logs and Checks

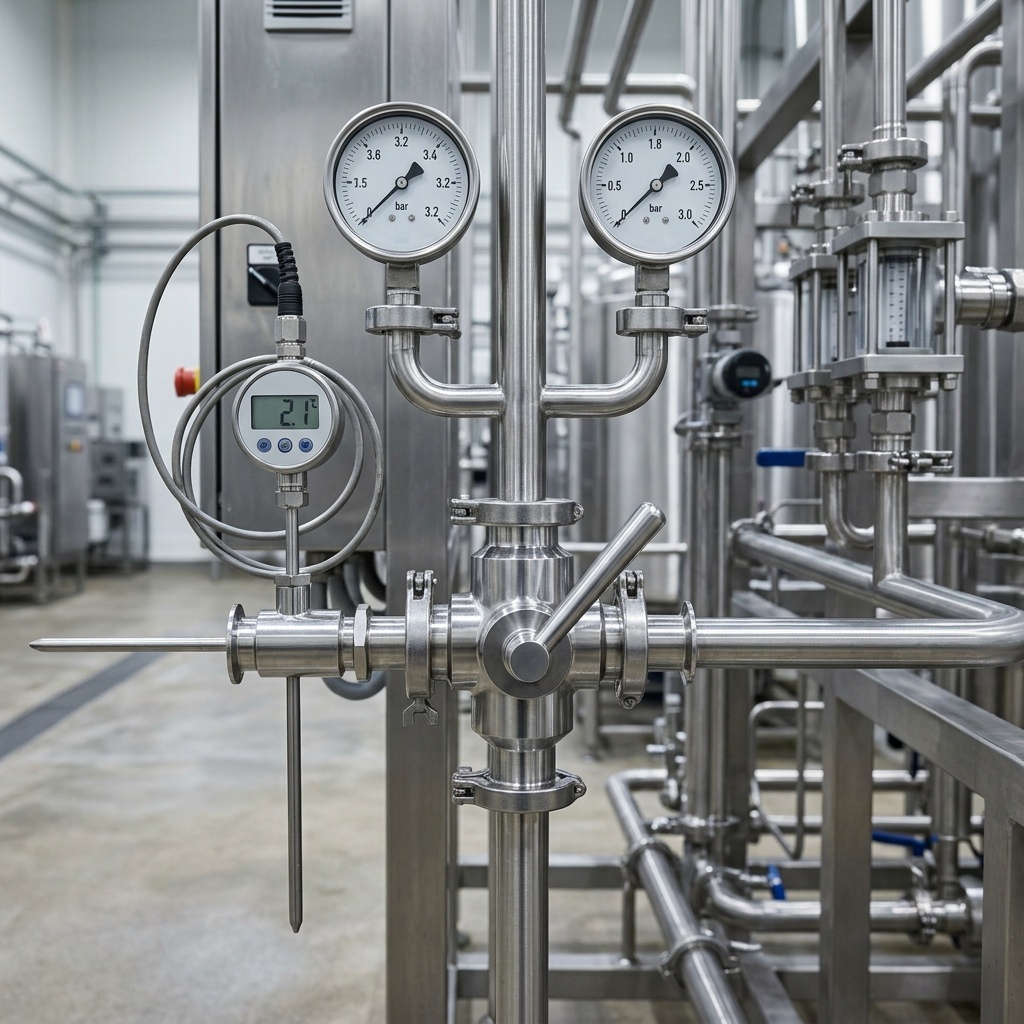

Calibrated digital thermometer probe and sanitary flow diversion valve in juice bottling facility
13min read
In this article

Juice HACCP monitoring is a planned series of checks at critical control points. Staff or instruments measure whether the process stays within its critical limits and create a record of the results. The plan must also explain what happens when a check fails.

QUICK TECHNICAL SUMMARY

What Is Juice HACCP Monitoring and Which Rules Apply?

Juice HACCP monitoring is an operational system of planned observations and measurements at critical control points (CCPs) mandated by FDA 21 CFR Part 120. Processors must track parameters including pasteurizer temperature, holding time, pressure differentials, and product pH to verify that controls meet approved critical limits. Every monitoring procedure specifies the parameter, method, frequency, and responsible person, creating verifiable records that require signed weekly review.

REGULATORY COMPLIANCE & SAFETY NOTICE

Important Safety Note: This guide provides a technical planning aid and does not substitute for a site-specific, validated HACCP plan approved by a qualified food safety team. Process critical limits must be established through scientific validation for your exact juice formulations and plant equipment. When a critical limit is breached, product must be contained immediately under formal corrective action procedures.

This technical pillar explains 21 CFR Part 120 mandates, monitoring versus verification distinctions, continuous HTST equipment controls, CCP log requirements, electronic record integrity, and deviation response protocols.

Statutory Regulations for Juice HACCP Monitoring

HACCP stands for Hazard Analysis and Critical Control Point. Under regulatory guidelines, an fda ccp defines a specific operational step where preventive control is essential to eliminate or reduce an identified food safety hazard. A critical limit is the measurable boundary that each control parameter must satisfy to ensure product safety.

Under federal fda juice haccp regulations codified in 21 CFR Part 120, United States juice processors must evaluate biological, chemical, and physical hazards and implement documented preventative controls. General beverage labels do not establish legal coverage, as retail establishments and specific farm operations have defined exemptions.

21 CFR Part 120 Provision Core Subject and Regulatory Mandate
Section 120.8 The written HACCP plan, including monitoring procedures, frequencies, and responsible personnel.
Section 120.10 Mandatory corrective actions and product segregation following a critical limit deviation.
Section 120.11 System verification, scientific validation, calibration checks, and seven-day record review.
Section 120.12 Record retention duration, content requirements, computerized records, and official inspection access.
Section 120.13 Required training and professional qualifications for individuals performing HACCP functions.
Section 120.24 Five-log pathogen reduction controls and specific retail exemptions.

Outside the United States, local regulations apply. The UK Food Standards Agency enforces food safety management systems based on Codex Alimentarius principles. While international principles align closely, foreign jurisdictions do not automatically enforce US regulatory timelines. For broader facility management context, our HACCP in beverage manufacturing guide details prerequisite programs, while this page focuses on measurement logging and data integrity.

Monitoring, Verification, and Validation: The Core Differences

Operational confusion often arises when production teams conflate monitoring, verification, and validation. Each activity addresses a fundamentally different quality assurance question.

Quality Assurance Task Core Investigative Question Practical Plant Floor Example
Scientific Validation Can the planned process reliably control the identified microbiological hazard? Published thermal death-time studies proving a specific time-temperature kills pertinent pathogens in this juice.
Real-Time Monitoring Is the control measure currently meeting its established critical limits during this run? Continuous RTD temperature and flowmeter observations recorded on a digital batch log.
System Verification Is the overall food safety system operating as intended according to the plan? Supervisory record review within seven days, monthly RTD calibration checks, and annual plan reassessments.

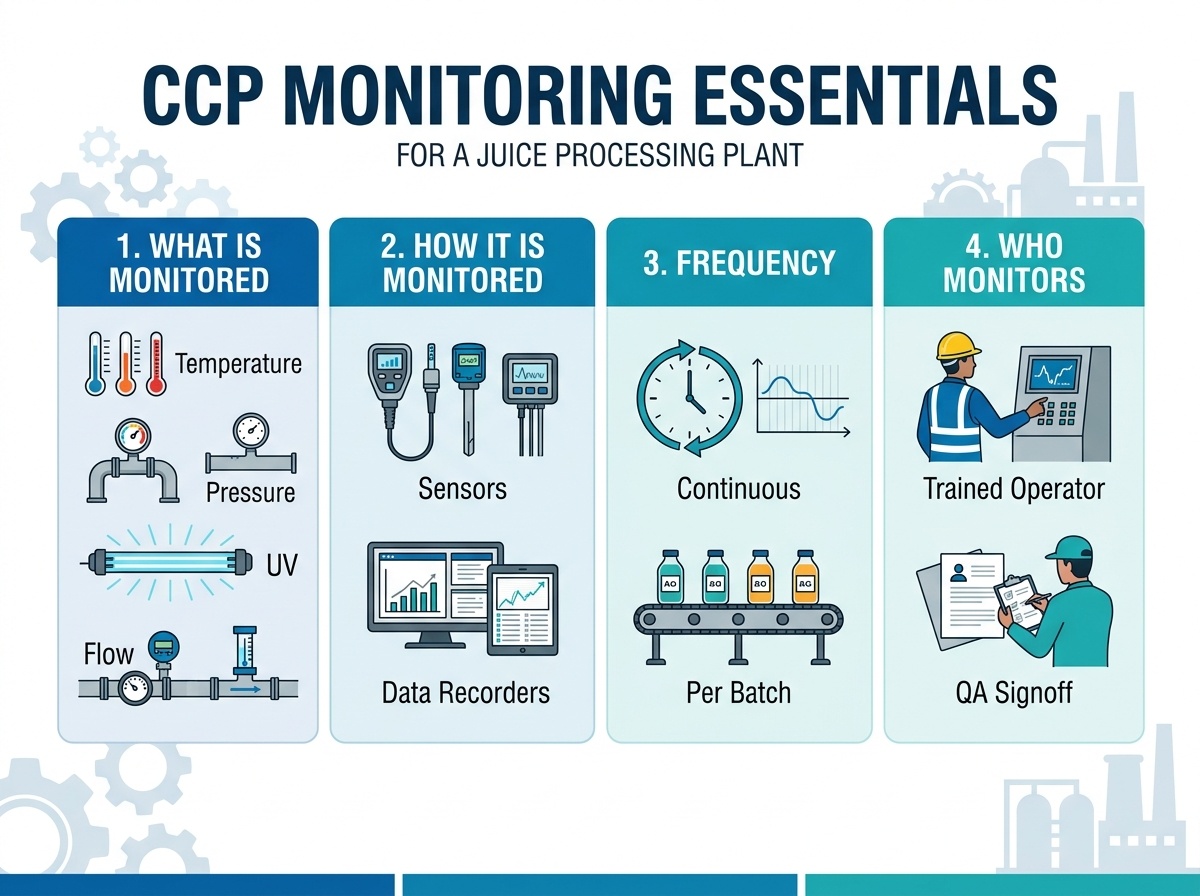

The Four Questions Every Monitoring Procedure Must Answer

Under 21 CFR 120.8(b)(4), a monitoring procedure must provide precise instructions rather than vague guidance. Every monitoring standard operating procedure must explicitly answer four structural questions:

  • What will be monitored? Identify the exact physical or chemical parameter (e.g., pasteurization exit temperature, holding tube pressure, juice pH).
  • How will it be monitored? Specify the measurement device, instrument calibration code, sensor location, and recording method.
  • What is the monitoring frequency? State whether logging is continuous or periodic (e.g., continuous SCADA recording versus manual checks every 30 minutes).
  • Who is responsible? Identify the specific trained job title responsible for collecting data and reacting immediately to process deviations.

As covered in our guide on how beverage manufacturers ensure food safety, end-product sampling can never substitute for real-time process monitoring. Microbiological hazards disperse unevenly through bulk liquids, and negative laboratory results cannot validate product that bypassed an established thermal or high-pressure control limit.

However, preventative verification and environmental monitoring programs (EMP) remain essential for ensuring that post-processing contact surfaces remain free from pathogenic biofilms. Modern juice bottling facilities increasingly implement rapid on-site diagnostic screening tools from NEMIS Tech to detect environmental bacterial risks such as Listeria monocytogenes on plant surfaces within hours, confirming sanitation effectiveness before production lines start.

Critical Monitoring Parameters in Juice Bottling

Monitoring parameters depend on the specific preservation technology and hazard analysis. Common industrial checks include:

Juice Processing Technology Critical Control Parameters Monitored
Continuous Thermal Pasteurization Holding-tube exit temperature, product volumetric flow rate, holding tube residence time, and diversion valve position.

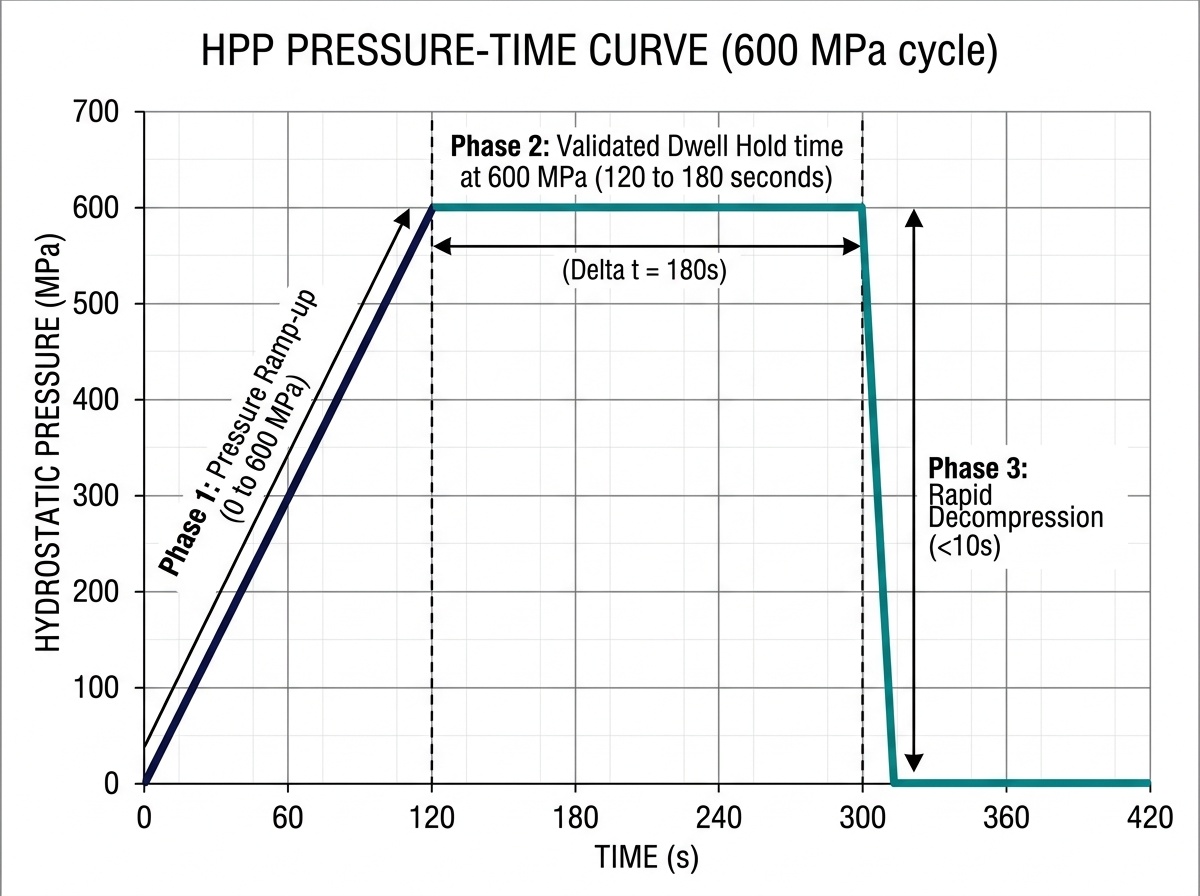

High-Pressure Processing (HPP) Intensifier vessel pressure curve, hold dwell duration, initial product temperature, and decompression profile.
Acidified and High-Acid Blends Equilibrium product pH measured with calibrated electrodes (verifying values remain at or below pH 4.6).
Physical Hazard Controls Inline strainer mesh integrity, metal detector sensitivity test pieces (ferrous, non-ferrous, stainless steel), and reject diverter actuation.

Continuous Temperature Monitoring and Holding Time

In pasteurization and thermal processing, effective juice haccp continuous monitoring ensures product safety by maintaining validated thermal conditions for the calculated holding duration. FDA guidance recommends automated temperature recording at the holding tube discharge point to verify that thermal critical limits are met continuously without interruption.

Holding time is governed by volumetric flow rate through the holding tube. If a positive displacement timing pump is utilized without variable speed controls, flow rate is mechanically restricted. When variable frequency drives or centrifugal feed pumps are installed, an approved magnetic flowmeter paired with high-flow alarm diversion systems is required to guarantee that the fastest-flowing particle receives full thermal exposure.

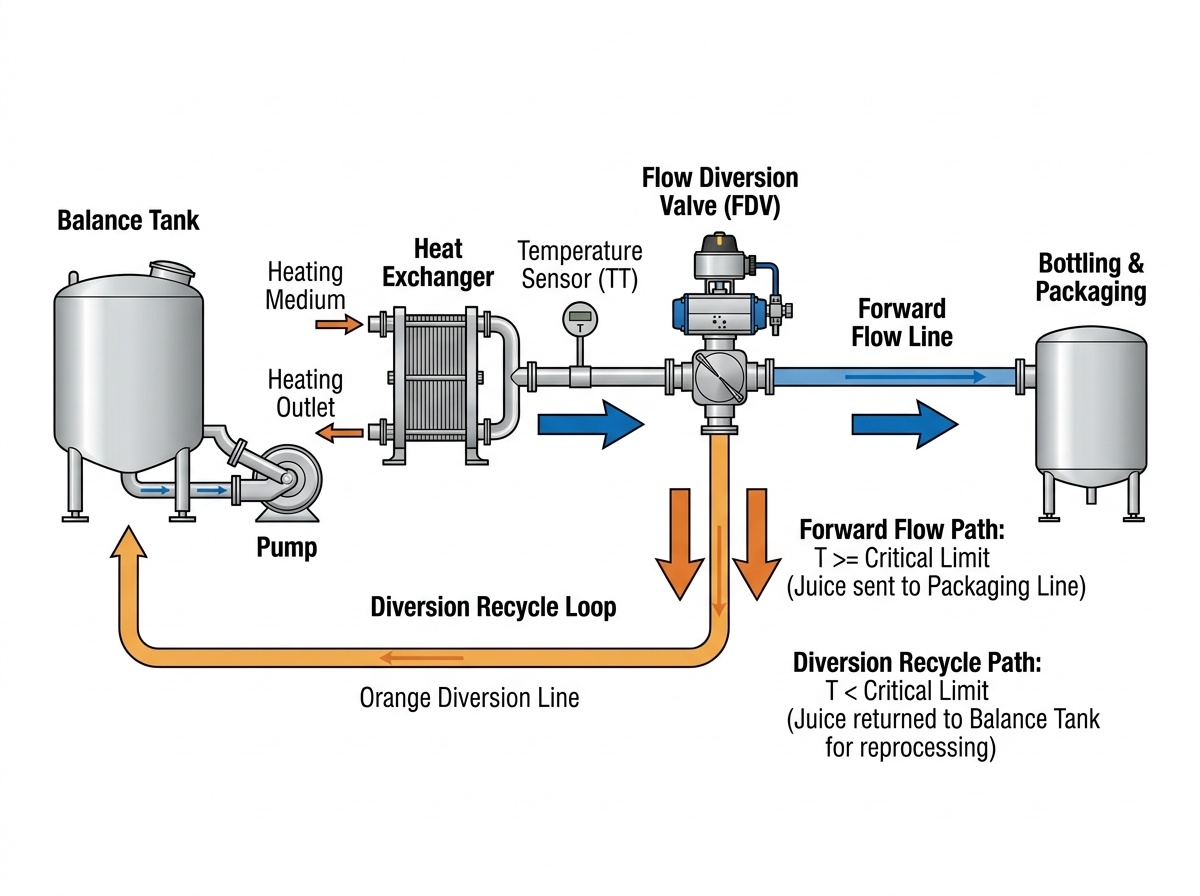

Flow Diversion Valves and Protective Interlocks

A flow diversion valve (FDV) is an automated mechanical barrier situated downstream of the holding tube. If temperature sensors detect fluid below the critical limit, the controller instantly actuates the valve, diverting underprocessed liquid back to the balance tank.

A safe diversion system requires assessing the complete response chain: sensor thermal response lag, controller signal processing, air pressure actuation, and physical valve travel time. High-performance lines utilize spring-return fail-safe valves that automatically divert flow upon electrical power loss or pneumatic pressure failure.

Juice CCP Monitoring Log Sheet Requirements

Under 21 CFR 120.12, HACCP monitoring records must capture actual values observed at the time of operation. Merely checking an "OK" box is insufficient and conceals whether true measurements occurred.

Log Field Group Mandatory Technical Information Recorded
Batch and Line Identity Processor name, plant facility location, specific product formulation, production code or lot number, line number, and CCP reference.
Approved Standard References Current plan version, established critical limit specifications (with measurement units), and required checking intervals.
Real-Time Observations Actual clock time, quantitative reading (e.g., 72.4C, 580 MPa), instrument calibration identification, and operating status.
Accountability and Signatures Signature or official initials of the trained machine operator, alongside weekly supervisory review verification signatures.

Calibration, Instrument Accuracy, and Traceability

Section 120.11(a)(2) mandates periodic calibration of process-monitoring instruments. Calibration confirms that measuring devices perform accurately against recognized reference standards under specified environmental conditions.

Metrological traceability, as defined by the National Institute of Standards and Technology (NIST), requires an unbroken chain of comparisons with documented measurement uncertainties. A probe calibration certificate must record both "as-found" and "as-left" states. If a sensor drifted out of calibration, prior production lots manufactured with that instrument must undergo immediate risk assessment.

Record Review Timelines and Qualified Reviewers

Under 21 CFR 120.11(a)(1)(iv), all CCP monitoring and corrective action records must receive documented review within seven calendar days of generation. The regulation specifies one week, not seven business days.

The individual conducting this review must meet Section 120.13 qualification requirements, holding certified training in juice HACCP or demonstrated equivalent practical experience. Holding a general FSMA Preventive Controls Qualified Individual (PCQI) title alone does not fulfill juice HACCP qualification mandates without juice-specific training.

Electronic Records and 21 CFR Part 11 Compliance

Facilities utilizing computerized SCADA architectures, automated data historians, or digital loggers must ensure electronic records satisfy 21 CFR Part 11 principles. Systems must maintain secure audit trails that record the timestamp, author, and justification for any data edit.

Connecting plant data to consumer packaging is explained in our technical review of why juice bottles have QR code labels. Consumer traceability links differ fundamentally from controlled regulatory factory archives, which must be retained on site or retrievable within 24 hours.

Record Retention Periods

Section 120.12 mandates explicit retention timeframes measured from the date of manufacture:

  • Perishable or Refrigerated Juices: Records must be retained for at least one full year from preparation date.
  • Frozen, Preserved, or Shelf-Stable Juices: Records must be retained for two years or the approved product shelf life, whichever is longer.

Records may move to secure offsite storage after six months, provided they can be produced at the plant within 24 hours during an official FDA inspection. For hygiene prerequisites supporting facility records, see our analysis of GMP certified beverages.

Commercial Co-Packing and Quality Oversight

Beverage brand owners contracting commercial manufacturing must verify that their co-packer maintains rigorous CCP monitoring. Inquire specifically about calibrated sensor maintenance, electronic audit trails, and qualified record review timelines. Partnering with a verified wholesale exotic drinks supplier guarantees dependable supply chain transparency, full HACCP compliance certificates, and validated manufacturing standards.

Frequently Asked Questions

Q.What is juice HACCP monitoring?

It is a planned series of observations or measurements at critical control points. It checks whether the process meets its critical limits and creates a record for review. Methods and frequency must fit the product and process.

Q.How does monitoring differ from verification?

Monitoring checks the control during operation. Verification checks that the system is implemented as intended and includes activities such as record review and calibration. Validation establishes that the plan can control the identified hazards.

Q.What is the minimum pasteurization temperature for juice?

There is no single minimum time-temperature schedule for every juice. Conditions must be validated for the product, process, and target hazard. Do not copy a dairy schedule or online example into a production plan.

Q.How does a flow diversion valve protect juice?

It can route product away from forward flow when the approved conditions are not met. Its safe state, response, interlocks, and tests depend on the installed design. Valve movement alone does not prove no affected product reached the filler.

Q.What does the five-log standard mean?

It means a 100,000-fold reduction in the pertinent microorganism where the US juice rule applies. It is not sterility or a total-plate-count target. The regulation has defined scope and process exceptions.

Q.How often must pasteurizer sensors be calibrated?

Use the applicable requirements and approved site procedures. Part 120 requires calibration but does not impose one quarterly RTD schedule or daily ice-bath procedure on every plant. Methods and intervals must suit the measurement and process.

Q.What should an operator do after a critical-limit failure?

Follow the approved response, contain potentially affected product, and escalate promptly. Qualified staff must assess the cause and product disposition. Document the event and the basis for restart; reprocessing is not automatic.

Q.What is differential pressure in a heat exchanger?

It is the difference in pressure between streams. A suitable pressure relationship can help manage leakage risk. The required value and monitoring method depend on the design; there is no universal half-bar rule for all juice plants.

Q.Who may review juice HACCP monitoring records?

The reviewer must meet section 120.13 through suitable juice-HACCP training or equivalent knowledge gained through job experience. A PCQI title alone is not enough. The person can be an external reviewer.

Q.When must monitoring records be reviewed?

US section 120.11 requires CCP monitoring and corrective-action records to receive signed, dated review within one week, or seven days, of being made. It does not say seven business days. Instrument calibration and testing records have a different timing provision.

Q.How long are juice HACCP records retained?

US section 120.12 requires at least one year for perishable or refrigerated juice. Frozen, preserved, and shelf-stable products require two years or their shelf life, whichever is longer. These periods run from preparation, not from expiry.

Q.How are holding-tube flow and time checked?

The approved design establishes how minimum treatment time is controlled. Some systems use flow measurement; others rely on suitable timing-pump and holding-system controls. A flowmeter reading alone does not validate residence time.

Q.Does continuous monitoring have to be digital?

No. A paper chart can record continuously. Digital systems can also collect incomplete data if faults occur. The monitoring method, recording format, frequency, and response to failure need separate assessment.

Q.What does HPP monitoring record?

It records the validated cycle factors for the product, such as pressure history, hold time, temperature conditions, and cycle status. There is no universal pressure-time recipe. A failed cycle requires assessment under the site's procedure.

Q.Can electronic monitoring records be corrected?

Controlled corrections can be made with reliable history and accountability. Original results must not be secretly replaced or concealed. Assess Part 11 and the underlying record requirements for the actual system.

Q.Can a finished-product test replace CCP monitoring?

No. Sampling after production does not establish that every product received the required treatment. A negative test should not automatically clear an unexplained process deviation or missing record.

Q.Is the blank log sheet an approved HACCP plan?

No. It supplies draft record fields only. A qualified team must establish the hazards, CCPs, limits, methods, frequency, responsibilities, and responses for the actual product and site.

Q.What happens if a recorder loses data?

Follow the site's approved data-gap and product-hold procedure. Assess the affected period and whether other reliable evidence exists. Do not assume a normal live display proves that a complete record was saved.

Q.Can an F-value calculation excuse a missed limit?

Not informally. Any model used for safety decisions must be part of the approved, validated process. A deviation still needs the required assessment and documentation; staff should not improvise a new treatment or release decision.

Q.Are all sanitation checks critical control points?

No. Sanitation monitoring and records have their own duties under section 120.6. The hazard analysis decides which controls belong at CCPs. Good hygiene still matters when a task is not listed as a CCP.
